Product Details
Place of Origin: Shenzhen, China
Brand Name: BOE
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: DV150X0M-N10
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
15 |
Brightness (cd/m²): |
350 |
Resolution: |
1280×1024 |
Active Area (W*H): |
304.128×228.096 |
Outline Dimension (W*H*T): |
306.5×230.1×10.0 |
Operating Temperature: |
-20 ~ 70 °C |
Storage Temperature: |
-20 ~ 70 °C |
Viewing Angle(RLUD): |
89/89/89/89 |
Viewing Direction: |
IPS |
Contrast Ratio: |
1000 |
LED Lifetime (hrs): |
50K |
Interface: |
LVDS 20 |
Size (inch): |
15 |
Brightness (cd/m²): |
350 |
Resolution: |
1280×1024 |
Active Area (W*H): |
304.128×228.096 |
Outline Dimension (W*H*T): |
306.5×230.1×10.0 |
Operating Temperature: |
-20 ~ 70 °C |
Storage Temperature: |
-20 ~ 70 °C |
Viewing Angle(RLUD): |
89/89/89/89 |
Viewing Direction: |
IPS |
Contrast Ratio: |
1000 |
LED Lifetime (hrs): |
50K |
Interface: |
LVDS 20 |

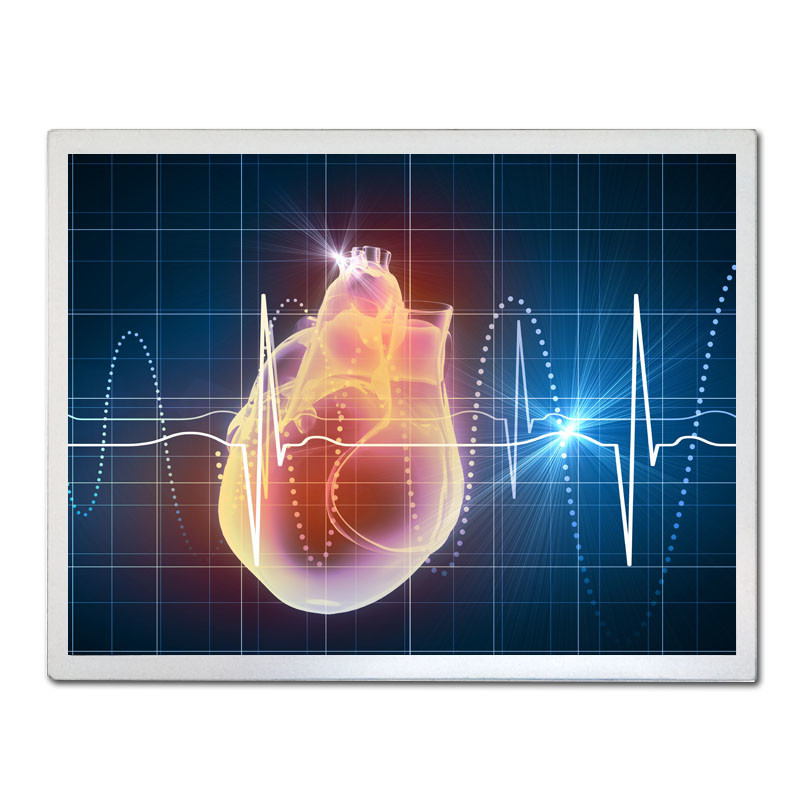

15 inch DV150X0M-N10 TFT LCD Module with 1920*1080 Pixels Resolution BOE IPS Panel
| BOE DV150X0M-N10 Application Details | ||||
| Basic Detail : | Manufacturer | BOE | Model Name | DV150X0M-N10 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 15.0 inch | Designed For | Industrial,Digital Signage | |
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -20 ~ 70 °C |
| RoHS | RoHS | Vibration Level | 1.2G (11.76 m/s²) | |
| Features : | Landscape/Portrait,WLED Backlight,Life≥50K hours,With LED Driver, Matte | |||
| BOE DV150X0M-N10 Optical Details | ||||
| Basic Detail : | Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 30 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | ADS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Variation | 1.33 (Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 74% | sRGB | 95% coverage |
| Adobe RGB | 73% coverage | DCI-P3 | 77% coverage | |
| Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| BOE DV150X0M-N10 Mechanical Details | ||||
| Pixel Features : | Number of Pixel | 1280(RGB)×1024 [SXGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.099×0.297 mm (H×V) | Pixel Pitch(W×H) | 0.297×0.297 mm (H×V) [85PPI] | |
| Physical Size : | Active Viewing | 304.128×228.096 mm (H×V) | Outline Dim. | 306.5×230.1 mm (H×V) |
| Outline Dim. | 326.5×253.5 mm (H×V) | Outline Depth | 9.7/10.0 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 (H:V) | Shape Style | ||
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Detail : | Weight | 930g | Surface | Antiglare (Haze 25%), Hard coating (3H) |
