Product Details
Place of Origin: Shenzhen, China
Brand Name: BOE
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: DV170E0M-N10
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
17 |
Brightness (cd/m²): |
250 |
Resolution: |
1280×1024 |
Active Area (W*H): |
337.92 × 270.336 |
Outline Dimension (W*H*T): |
358.5×296.5×10.8 |
Operating Temperature: |
0 ~ 50 °C |
Storage Temperature: |
-20 ~ 60 °C |
Viewing Angle(RLUD): |
89/89/89/89 |
Viewing Direction: |
IPS |
Contrast Ratio: |
1000 |
LED Lifetime (hrs): |
50K |
Interface: |
LVDS 30 |
Size (inch): |
17 |
Brightness (cd/m²): |
250 |
Resolution: |
1280×1024 |
Active Area (W*H): |
337.92 × 270.336 |
Outline Dimension (W*H*T): |
358.5×296.5×10.8 |
Operating Temperature: |
0 ~ 50 °C |
Storage Temperature: |
-20 ~ 60 °C |
Viewing Angle(RLUD): |
89/89/89/89 |
Viewing Direction: |
IPS |
Contrast Ratio: |
1000 |
LED Lifetime (hrs): |
50K |
Interface: |
LVDS 30 |

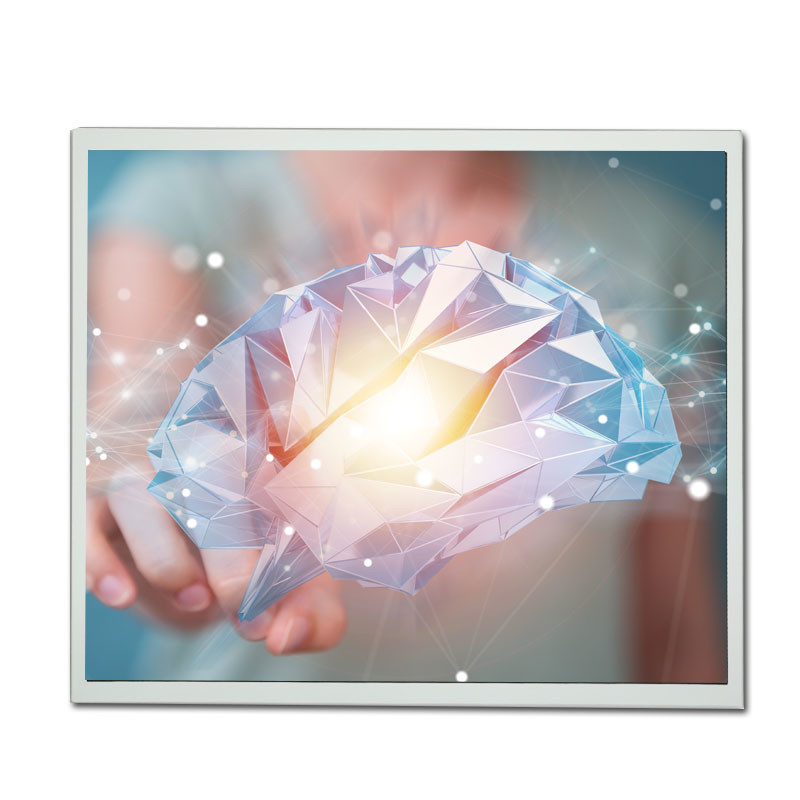

17 inch DV170E0M-N10 BOE Panel Typewith 1024×768 Pixels Resolution 250nit IPS Screen Viewing Angle
| BOE DV170E0M-N10 Application Details | ||||
| Basic Detail : | Manufacturer | BOE | Model Name | DV170E0M-N10 |
| Panel Type | a-Si TFT-LCD , LCM | |||
| Panel Size | 17.0 inch | Designed For | Digital Signage | |
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | ‐0 ~ 60 °C |
| RoHS | RoHS | Vibration Level | ||
| Features : | Landscape/Portrait,Hight WLED Backlight,Upside I/F, Matte | |||
| BOE DV170E0M-N10 Mechanical Details | ||||
| Pixel Features : | Number of Pixel | 1280(RGB)×1024, SXGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch (mm) | 0.088×0.264 (H×V) | Pixel Pitch (mm) | 0.264×0.264 (H×V) [96PPI] | |
| Physical Size : | Active Viewing (mm) | 337.92(H) × 270.336(V) | Bezel Area(mm) | 341.72(H) × 274.14(V) |
| Outline Dim.(mm) | 358.5(H) × 296.5(V) | Depth(mm) | 8.7/10.8 (Typ./Max.) | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 5:4 (H:V) | Shape Style | ||
| Mounting : | Side mounting holes (4-M2) on left, right bezel | |||
| Other Detail : | Mass | 1.35Kgs (Typ.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
| BOE DV170E0M-N10 Optical Details | ||||
| Basic Information : | Luminance | 250 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 20 (Typ.)(Tr+Td) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | HADS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 73% | sRGB | 94% coverage |
| Adobe RGB | 73% coverage | DCI-P3 | 76% coverage | |
| Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
