Product Details
Place of Origin: Shenzhen, China
Brand Name: BOE
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: DV150X0M-N12
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
15 |
Brightness (cd/m²): |
350 |
Resolution: |
1024×768 |
Active Area (W*H): |
304.128×228.096 |
Outline Dimension (W*H*T): |
326.5×253.5×10 |
Operating Temperature: |
-20 ~ 70 °C |
Storage Temperature: |
-20 ~ 70 °C |
Viewing Angle(RLUD): |
89/89/89/89 |
Viewing Direction: |
IPS |
Contrast Ratio: |
1000 |
LED Lifetime (hrs): |
50K |
Interface: |
LVDS 20 |
Size (inch): |
15 |
Brightness (cd/m²): |
350 |
Resolution: |
1024×768 |
Active Area (W*H): |
304.128×228.096 |
Outline Dimension (W*H*T): |
326.5×253.5×10 |
Operating Temperature: |
-20 ~ 70 °C |
Storage Temperature: |
-20 ~ 70 °C |
Viewing Angle(RLUD): |
89/89/89/89 |
Viewing Direction: |
IPS |
Contrast Ratio: |
1000 |
LED Lifetime (hrs): |
50K |
Interface: |
LVDS 20 |

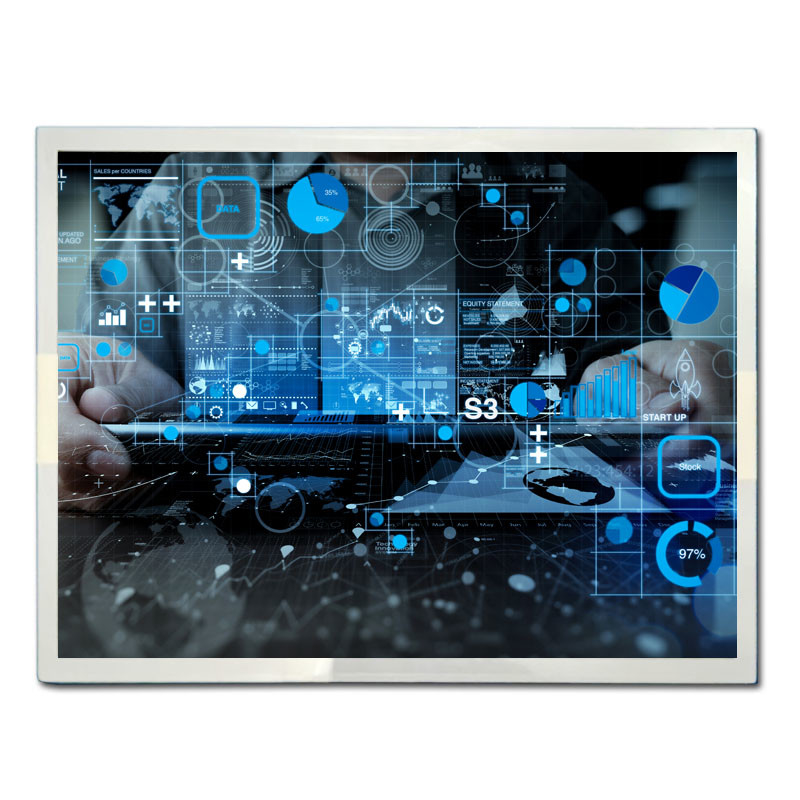

15 inch DV150X0M-N12 BOE LCD Screen with 1024×768 Pixels Resolution Automotive LCD Display
| Brand | BOE |
| Model P/N | DV150X0M-N12 |
| Diagonal Size | 15.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | 306.5(W)×230.1(H) mm |
| Outline Dim. | 326.5(W)×253.5(H)×10(D) mm |
| Luminance | 350 cd/m² (Typ.) |
| View Direction | Symmetry |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Support Color | 16.7M 72% NTSC |
| Weight | 930g |
| Frame Rate | 60Hz |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Response Time | 30 (Typ.)(Tr+Td) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Light Source | WLED [12S4P] , 50K hours , With LED Driver |
| Designed For | Industrial |
| Touch Panel | Without |
| Interface Type | eDP (1 Lane) 30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -20 ~ 70 °C |
