Product Details
Place of Origin: Shenzhen, China
Brand Name: BOE
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: DV185WHM-NM1
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
18 |
Brightness (cd/m²): |
250 |
Resolution: |
1366×768 |
Active Area (W*H): |
409.8×230.4 |
Outline Dimension (W*H*T): |
430.4×254.6×10.9 |
Operating Temperature: |
0 ~ 50 °C |
Storage Temperature: |
-20 ~ 60 °C |
Viewing Angle(RLUD): |
89/89/89/89 |
Viewing Direction: |
IPS |
Contrast Ratio: |
1000 |
LED Lifetime (hrs): |
30K |
Interface: |
LVDS 30 |
Size (inch): |
18 |
Brightness (cd/m²): |
250 |
Resolution: |
1366×768 |
Active Area (W*H): |
409.8×230.4 |
Outline Dimension (W*H*T): |
430.4×254.6×10.9 |
Operating Temperature: |
0 ~ 50 °C |
Storage Temperature: |
-20 ~ 60 °C |
Viewing Angle(RLUD): |
89/89/89/89 |
Viewing Direction: |
IPS |
Contrast Ratio: |
1000 |
LED Lifetime (hrs): |
30K |
Interface: |
LVDS 30 |

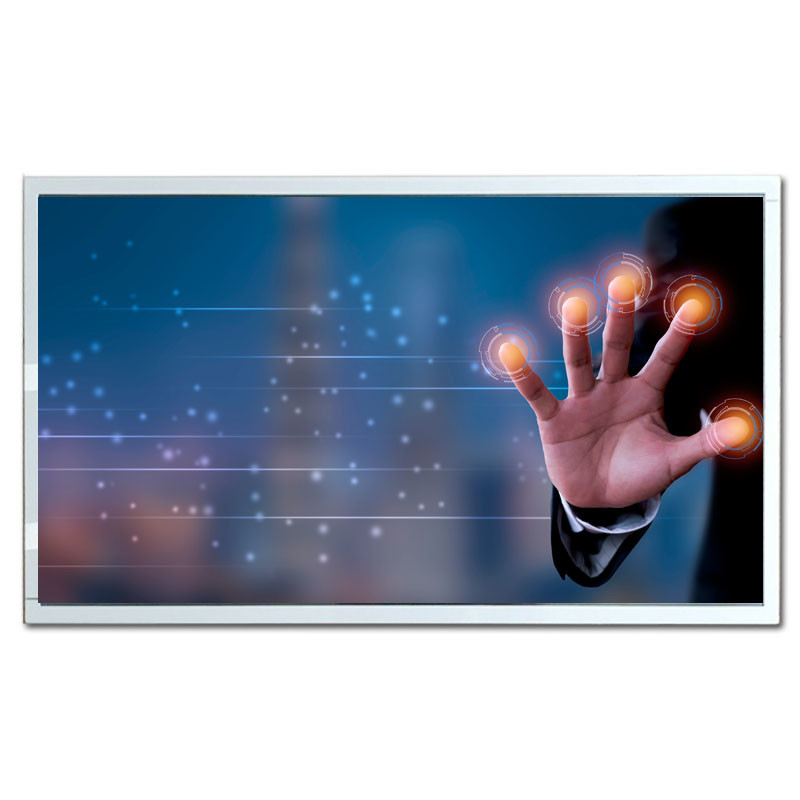

18.5 inch DV185WHM-NM1 BOE Module with 1366×768 Pixels Resolution 250nit LCD Panel Type
| BOE DV185WHM-NM1 Application Details | ||||
| Basic Detail : | Manufacturer | BOE | Model Name | DV185WHM-NM1 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 18.5 inch | Designed For | Medical Imaging,Digital Signage | |
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
| Features : | Srgb, WLED Backlight, Upside I/F,Matte | |||
| BOE DV185WHM-NM1 Optical Details | ||||
| Basic Detail : | Luminance | 250 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 14 (Typ.)(G to G) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | ADS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 75% | sRGB | 99% coverage |
| Adobe RGB | 77% coverage | DCI-P3 | 78% coverage | |
| Rec.2020 | 56% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| BOE DV185WHM-NM1 Mechanical Details | ||||
| Pixel Features : | Number of Pixel | 1366(RGB)×768, WXGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch | 0.100×0.300 (H×V) | Pixel Pitch(W×H) | 0.300×0.300 (H×V) [84PPI] | |
| Physical Size : | Active Viewing | 409.8(H) × 230.4(V) | Bezel Area(mm) | 413.4(H) × 234.0(V) |
| (mm) | ||||
| Outline Dim. | 430.4(H) × 254.6(V) | Depth(mm) | 7.7/11.4 (Typ./Max.) | |
| (mm) | ||||
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:09 | Shape Style | ||
| Fixation : | Without | |||
| Other Detail : | Mass | 1.30Kgs (Typ.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
