Product Details
Place of Origin: Shenzhen, China
Brand Name: BOE
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: DV190E0M-N11
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
19 |
Brightness (cd/m²): |
250 |
Resolution: |
1280×1024 |
Active Area (W*H): |
374.784×299.827 |
Outline Dimension (W*H*T): |
396×324×10.4 |
Operating Temperature: |
0 ~ 50 °C |
Storage Temperature: |
-20 ~ 60 °C |
Viewing Angle(RLUD): |
89/89/89/89 |
Viewing Direction: |
IPS |
Contrast Ratio: |
1000 |
LED Lifetime (hrs): |
30K |
Interface: |
LVDS 30 |
Size (inch): |
19 |
Brightness (cd/m²): |
250 |
Resolution: |
1280×1024 |
Active Area (W*H): |
374.784×299.827 |
Outline Dimension (W*H*T): |
396×324×10.4 |
Operating Temperature: |
0 ~ 50 °C |
Storage Temperature: |
-20 ~ 60 °C |
Viewing Angle(RLUD): |
89/89/89/89 |
Viewing Direction: |
IPS |
Contrast Ratio: |
1000 |
LED Lifetime (hrs): |
30K |
Interface: |
LVDS 30 |

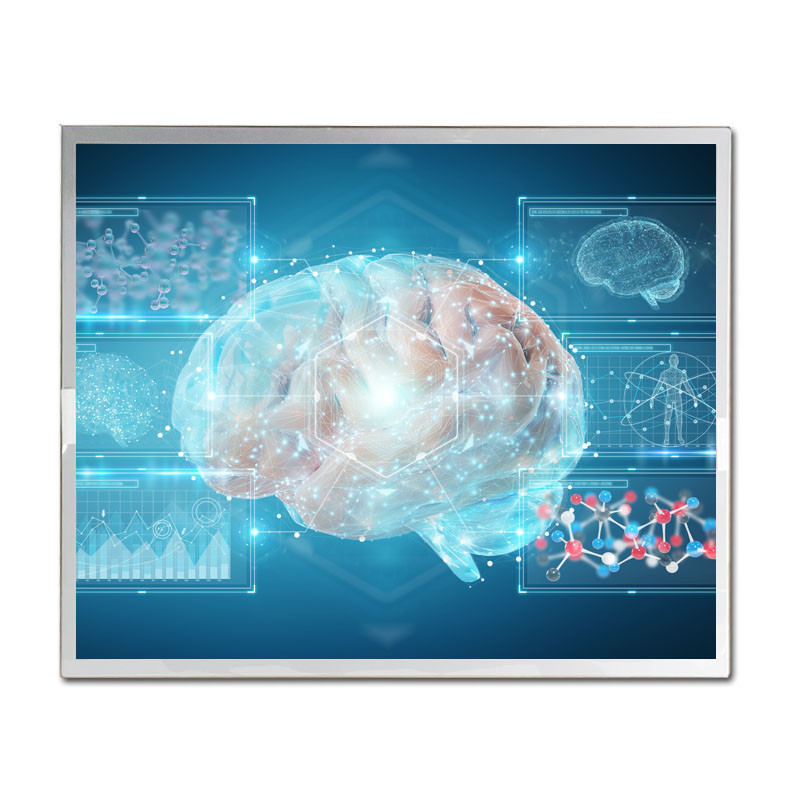

19 inch BOE DV190E0M-N11 IPS LCD Screen with 1280×1024 Pixels Resolution 250nit TFT LCD Display
| Brand | BOE |
| Model P/N | DV190E0M-N11 |
| Diagonal Size | 19.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×1024, SXGA 86PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 374.784(W)×299.827(H) mm |
| Bezel Opening | 376.78(W)×303.0(H) mm |
| Outline Dim. | 396(H)×324(V) ×10.4(D) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 14 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | HADS, Normally Black, Transmissive |
| Support Color | 16.7M 72% NTSC |
| Light Source | WLED [24S2P] , 30K hours , W/O Driver |
| Weight | 1.52Kgs (Typ.) |
| Designed For | Indusrial; Digital signage |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
