Product Details
Place of Origin: Shenzhen, China
Brand Name: BOE
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: DV150X0M-N16
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
15 |
Brightness (cd/m²): |
600 |
Resolution: |
1024×768 |
Active Area (W*H): |
304.128×228.096 |
Outline Dimension (W*H*T): |
326.5×253.5×10.4 |
Operating Temperature: |
-20 ~ 70 °C |
Storage Temperature: |
-30 ~ 80 °C |
Viewing Angle(RLUD): |
89/89/89/89 |
Viewing Direction: |
IPS |
Contrast Ratio: |
1000 |
LED Lifetime (hrs): |
50K |
Interface: |
LVDS 20 |
Size (inch): |
15 |
Brightness (cd/m²): |
600 |
Resolution: |
1024×768 |
Active Area (W*H): |
304.128×228.096 |
Outline Dimension (W*H*T): |
326.5×253.5×10.4 |
Operating Temperature: |
-20 ~ 70 °C |
Storage Temperature: |
-30 ~ 80 °C |
Viewing Angle(RLUD): |
89/89/89/89 |
Viewing Direction: |
IPS |
Contrast Ratio: |
1000 |
LED Lifetime (hrs): |
50K |
Interface: |
LVDS 20 |

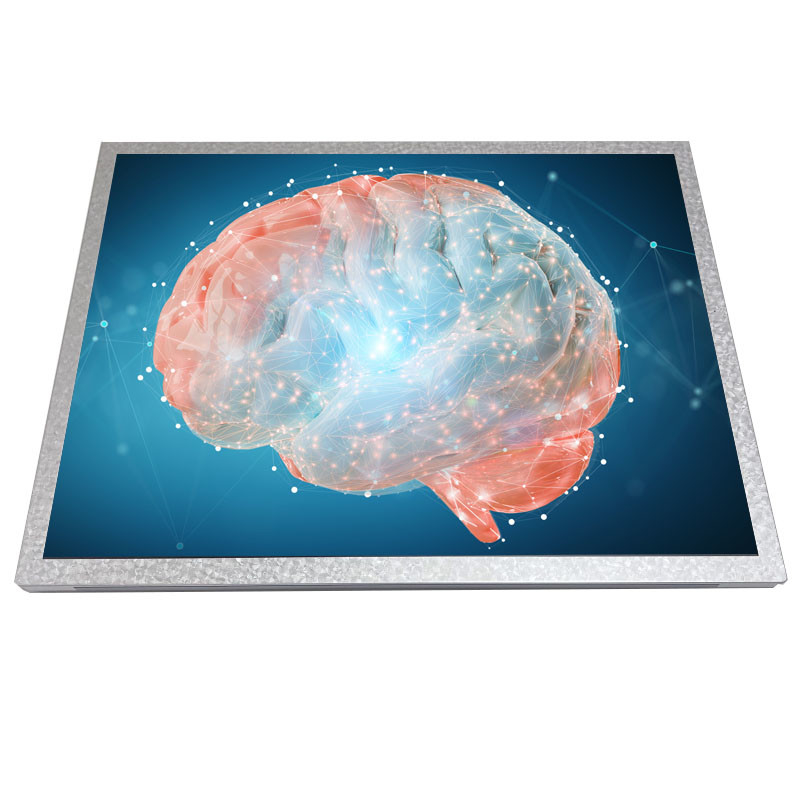

15 inch DV150X0M-N16 BOE Panel with 1024×768 Pixels Resolution 600nit High Brightness LCD Display
| Brand | BOE |
| Model P/N | DV150X0M-N16 |
| Diagonal Size | 15.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | 306.13(W)×230.1(H) mm |
| Outline(mm) | 326.5(W)×253.5(H)×10.4(D) |
| Luminance | 600 (Typ.)(cd/m²) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Color Depth | 16.7M 72% NTSC |
| Mass | 730g |
| Refresh Rate | 60Hz |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Work Mode | ADS, Normally Black, Transmissive |
| Response | 30 (Typ.)(Tr+Td) ms |
| Backlight | 12S4P WLED , 50K hours , With LED Driver |
| Used for | Industrial |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit) , 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
