Product Details
Place of Origin: Shenzhen, China
Brand Name: BOE
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: DV185WHM-NM2
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size(inch): |
18.5 |
Resolution: |
1366*768 Pixels |
Brightness (cd/m²): |
500 |
Operating Temperature: |
-0 ~ 50 °C |
Storage Temperature: |
-20 ~ 60 °C |
Active Area (W*H): |
409.8(H) X 230.4 Mm |
Outline Dimension (W*H*T): |
430.4 X 254.6 X 10.9 Mm |
LED Lifetime (hrs): |
50K |
Viewing Direction: |
IPS |
Interface: |
LVDS |
Size(inch): |
18.5 |
Resolution: |
1366*768 Pixels |
Brightness (cd/m²): |
500 |
Operating Temperature: |
-0 ~ 50 °C |
Storage Temperature: |
-20 ~ 60 °C |
Active Area (W*H): |
409.8(H) X 230.4 Mm |
Outline Dimension (W*H*T): |
430.4 X 254.6 X 10.9 Mm |
LED Lifetime (hrs): |
50K |
Viewing Direction: |
IPS |
Interface: |
LVDS |

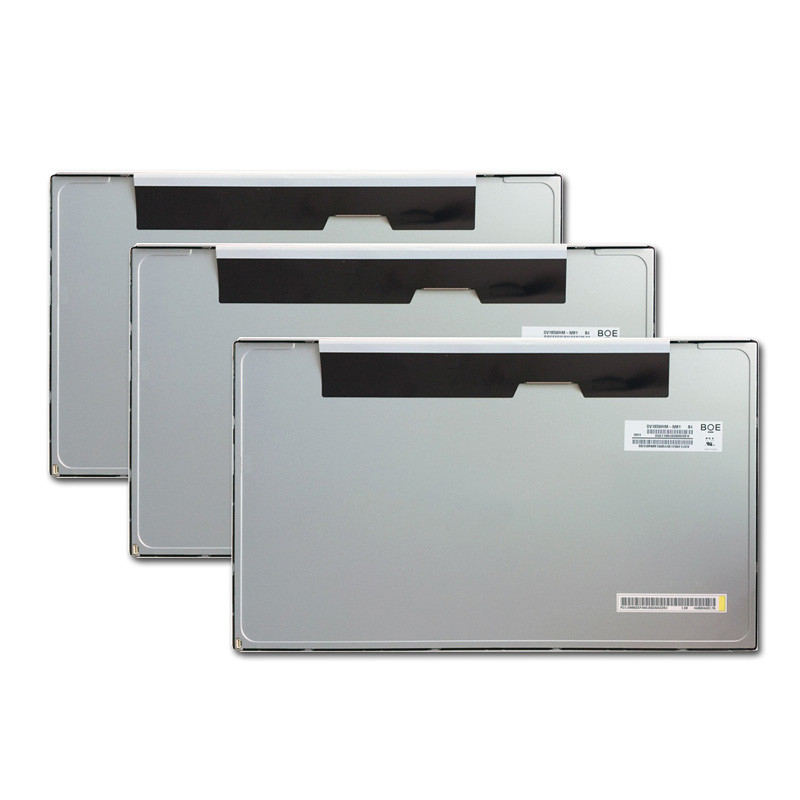

18.5 inch High Resolution 1366*768 DV185WHM-NM2 BOE LCD Display
1.0 GENERAL DESCRIPTION
DV185WHM-NM2 is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 18.5 inch diagonally measured active area with WXGA resolutions (1366 horizontal by 768 vertical pixel array) Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type.
|
Parameter |
Specification |
Unit |
Remarks |
| Active area |
409.8(H) x 230.4(V) |
mm | |
| Number of pixels |
1366(H) x768(V) |
pixels | |
| Pixel pitch | 0.1(H) x0.3(V) | mm | |
| Pixel arrangement |
RGB Vertical stripe |
||
| Display colors | 16.7M | colors | |
| Display mode |
Normally Black |
||
| Dimensional outline | 430.4(H) x 254.6(V) x 10.9(D) typ. | mm | Detail refer to drawing |
| Weight | 1300(typ.) | g | |
| Bezel width (L/R/U/D) | 8.5/8.5/10.3/10.3 | mm | |
| Surface Treatment | Haze 25%, 3H | ||
| Back-light | right edge side, 1- LED Light bar |
Our BOE LCD Display product technical support and services include:
Product Packaging:
Shipping:
Frequently Asked Questions:
Q: What is the brand name of this LCD display?
A: The brand name of this LCD display is BOE.
Q: What is the model number of this LCD display?
A: The model number of this LCD display is DV185WHM-NM2.
Q: Is this display manufactured by BOE?
A: Yes, it is. We are authorized to sell the BOE series products.
