Product Details
Place of Origin: Shenzhen, China
Brand Name: BOE
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: DV185FHM-R00
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
18.5 |
Resolution: |
1920*1080Pixels |
Luminance(nits): |
1000 |
Viewing Angle(RLUD): |
89/89/89/89 |
Viewing Direction: |
IPS |
Active Area (W*H): |
408.96*230.04 |
Outline Dimension (W*H*T): |
430.4*254.6*15.9 |
Operating Temperature: |
-20℃～60℃ |
Storage Temperature: |
-30℃～70℃ |
Interface: |
LVDS 30 |
Contrast Ratio: |
1000 |
LED Lifetime (hrs): |
50K |
Size (inch): |
18.5 |
Resolution: |
1920*1080Pixels |
Luminance(nits): |
1000 |
Viewing Angle(RLUD): |
89/89/89/89 |
Viewing Direction: |
IPS |
Active Area (W*H): |
408.96*230.04 |
Outline Dimension (W*H*T): |
430.4*254.6*15.9 |
Operating Temperature: |
-20℃～60℃ |
Storage Temperature: |
-30℃～70℃ |
Interface: |
LVDS 30 |
Contrast Ratio: |
1000 |
LED Lifetime (hrs): |
50K |

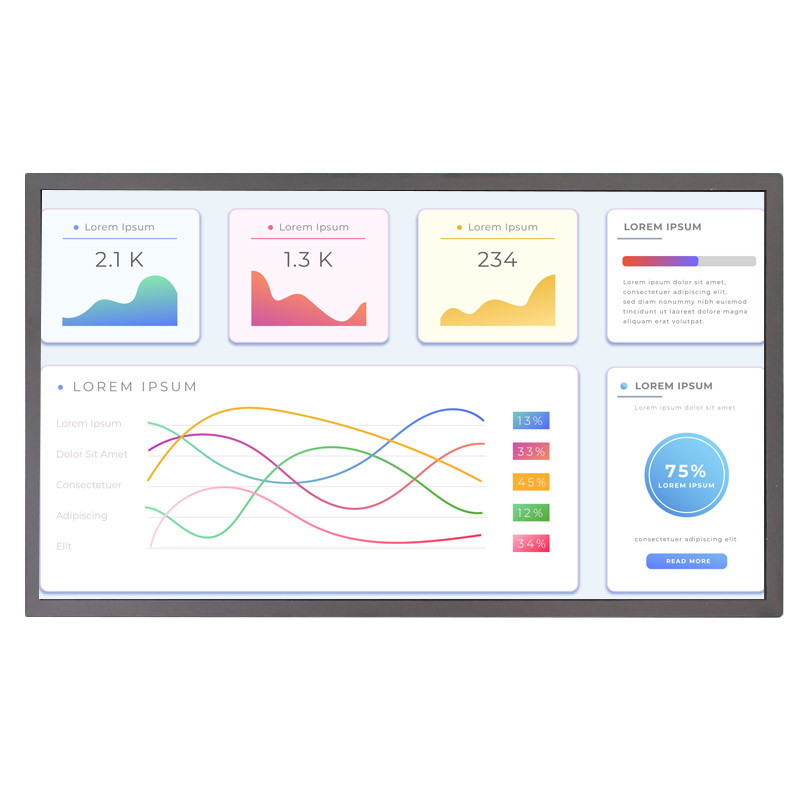

18.5 inch DV185FHM-R00 BOE Screen Panel 1000 nits High Brightness LCD Display Resolution 1920*1080
With a resolution of 1920*1080 pixels, this BOE LCD Display offers sharp and clear images, making it suitable for different applications like gaming, advertising, and digital signage. The LED backlight technology used in this display ensures that it has a long lifespan, with a lifetime of up to 50,000 hours.
The active area of the display is 408.96*230.04, making it a perfect fit for various devices. This BOE LCD Display is also ideal for military LCD applications due to its ruggedness and durability. The display is designed to withstand harsh environments, including extreme temperatures, vibrations, and shock.
Overall, BOE LCD Display is an excellent choice for those who want reliable and high-quality displays. With its IPS viewing direction, high luminance, and long lifespan, this display module is perfect for different applications. Whether you need a display for gaming, advertising, digital signage, or military LCD applications, BOE LCD Display is a product worth considering.
This BOE LCD Display is a medical TFT display with a high contrast ratio of 1000. It has a size of 18.5 inches and an interface of LVDS 30. With an operating temperature range of -20℃ to 60℃ and an LED lifetime of 50K hours, this LCD panel is a reliable choice for medical applications.
| Panel Model | DV185FHM-R00 |
| Brand | BOE |
| Size | 18.5 |
| TN/VA/IPS | IPS |
| Resolution | 1920×1080 |
| Brightness | 1000 |
| C/R | 1000:01:00 |
| Surface | AG25 |
| View Angle | 89/89/89/89 |
| Colors | 16.7M |
| Active Area | 408.96×230.04 |
| Outline Size | 430.4×252.2 |
| Typ. Depth | 12.4mm |
| Max. Depth | 18mm |
| Shape Style | |
| Backlight | WLED |
| Interface | LVDS |
| Pins | 30 pins |
| Frequency | 60Hz |
| Work Temp. | -20~60°C |
| Storage Temp. | -30~70°C |
This industrial LCD screen is a product of a leading LCD panel and display manufacturer.
The BOE LCD Display Panel has a luminance of 1000 nits, which makes it suitable for outdoor applications. The outline dimension of the panel is 430.4*254.6*15.9, and the active area is 408.96*230.04. It has an IPS viewing direction and a resolution of 1920*1080 pixels.
The BOE LCD Display Panel is suitable for a variety of product application occasions and scenarios. It is ideal for outdoor advertising, digital signage, kiosks, industrial displays, and more. It is also suitable for use in medical devices, aviation displays, and other applications that require high-quality display panels.
Our technical support and services for the BOE LCD Display product include:
We are committed to providing our customers with the highest level of technical support and services to ensure the optimal performance and longevity of their BOE LCD Displays.
Product Packaging:
The BOE LCD Display is carefully packaged to ensure safe delivery. The display is first wrapped in a layer of protective foam and then placed in a sturdy cardboard box. The box is sealed with strong tape to prevent any damage during shipping.
Shipping:
We offer free shipping for the BOE LCD Display. The product will be shipped within 1-2 business days after the order is placed. We use reliable and efficient shipping carriers to ensure timely delivery of your product. You will receive a tracking number via email once your order has been shipped.
