Product Details
Place of Origin: Shenzhen, China
Brand Name: BOE
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: DV270QUM-R10
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
27 |
Resolution: |
3840*2160 |
Luminance(nits): |
1000 |
Active Area (W*H): |
596.74*335.66 |
Outline Dimension (W*H*T): |
623.34*362.26*17.5 |
Storage Temperature: |
-30℃～70℃ |
Operating Temperature: |
-20℃～60℃ |
LED Lifetime (hrs): |
50K |
Viewing Direction: |
IPS |
Viewing Angle(RLUD): |
89/89/89/89 |
Interface: |
EDP 30 |
Size (inch): |
27 |
Resolution: |
3840*2160 |
Luminance(nits): |
1000 |
Active Area (W*H): |
596.74*335.66 |
Outline Dimension (W*H*T): |
623.34*362.26*17.5 |
Storage Temperature: |
-30℃～70℃ |
Operating Temperature: |
-20℃～60℃ |
LED Lifetime (hrs): |
50K |
Viewing Direction: |
IPS |
Viewing Angle(RLUD): |
89/89/89/89 |
Interface: |
EDP 30 |

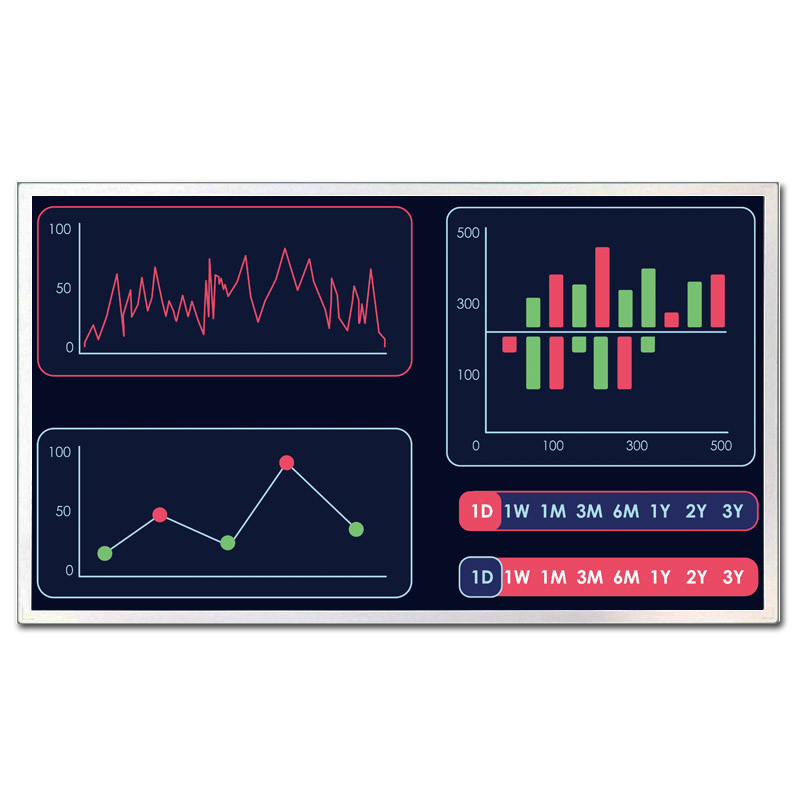

27 inch DV270QUM-R10 BOE Display Panel with Wide Viewing Angle High Brightness LCD Screen
The 4K UHD (3840 x 2160) resolution packs in over 8 million pixels, delivering four times the detail of standard 1080p HD. Fine textures, intricate details, and vibrant colors come alive on this expansive 27-inch screen, offering a level of visual fidelity that will transform your digital content.
The BOE LCD Display features an EDP 30 interface, which allows for easy and fast data transmission. This makes it ideal for use in a wide range of applications, including military and industrial settings, where reliability and speed are crucial.
Another impressive feature of the BOE LCD Display is its long LED lifetime of 50,000 hours. This means that the display can be used for extended periods without worrying about the need for frequent maintenance or replacement.
| Panel Model | DV270QUM-R10 |
| Brand | BOE |
| Size | 27 |
| TN/VA/IPS | IPS |
| Resolution | 3840×2160 |
| Brightness | 1000 |
| C/R | 1200:01:00 |
| Surface | AG25 |
| View Angle | 89/89/89/89 |
| Colors | 1.07B |
| Active Area | 596.736×335.664 |
| Outline Size | 623.34×362.3 |
| Typ. Depth | 11.5mm |
| Max. Depth | 18.7mm |
| Shape Style | |
| Backlight | WLED |
| Interface | eDP |
| Pins | 30 pins |
| Frequency | 60Hz |
| Work Temp. | -20~60°C |
| Storage Temp. | -30~65°C |
This is a technical parameter table for a BOE LCD Display product. This medical TFT display has an EDP display interface and is an LCD TFT module. It has an IPS viewing direction, a contrast ratio of 1200, and a viewing angle of 89/89/89/89. The LED lifetime is 50K hours and it has an operating temperature range of -20℃～60℃. The luminance is 1000 nits and the active area is 596.74*335.66. Its outline dimension is 623.34*362.26*17.5.
The BOE LCD display is an ideal product for use in various scenarios, including medical tft display, gaming, and industrial automation. The product has a high contrast ratio of 1200, providing clear and vivid images.
The 27-inch size of the BOE LCD display makes it perfect for use in medical tft display applications. The size is large enough to display medical images and data clearly, making it easier for medical professionals to diagnose and treat patients. The product's high luminance of 1000 nits ensures that the display is bright enough to be seen in any lighting condition, making it perfect for use in medical settings where lighting can be low.
Our BOE LCD Display product technical support team is available to provide assistance with any issues related to the product's performance or functionality. Our team of experts can assist with troubleshooting, diagnosing and resolving any technical issues that may arise. We also offer a range of services including repair, maintenance, and installation support to ensure that our customers get the most out of their BOE LCD Display. Our goal is to provide our customers with exceptional support and service to ensure that their experience with our product is seamless and hassle-free.
