Product Details
Place of Origin: Shenzhen, China
Brand Name: BOE
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: GV185FHM-N10
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
18.5 |
Resolution: |
1920*1080 |
Luminance(nits): |
500 |
Operating Temperature: |
-20℃～70℃ |
Storage Temperature: |
-30℃～80℃ |
Active Area (W*H): |
408.96×230.04 |
Outline Dimension (W*H*T): |
430.4×254.6×14.25 |
Viewing Direction: |
IPS |
Viewing Angle(RLUD): |
85/85/85/85 |
Interface: |
LVDS 30 |
Contrast Ratio: |
1200 |
LED Lifetime (hrs): |
30k |
Size (inch): |
18.5 |
Resolution: |
1920*1080 |
Luminance(nits): |
500 |
Operating Temperature: |
-20℃～70℃ |
Storage Temperature: |
-30℃～80℃ |
Active Area (W*H): |
408.96×230.04 |
Outline Dimension (W*H*T): |
430.4×254.6×14.25 |
Viewing Direction: |
IPS |
Viewing Angle(RLUD): |
85/85/85/85 |
Interface: |
LVDS 30 |
Contrast Ratio: |
1200 |
LED Lifetime (hrs): |
30k |

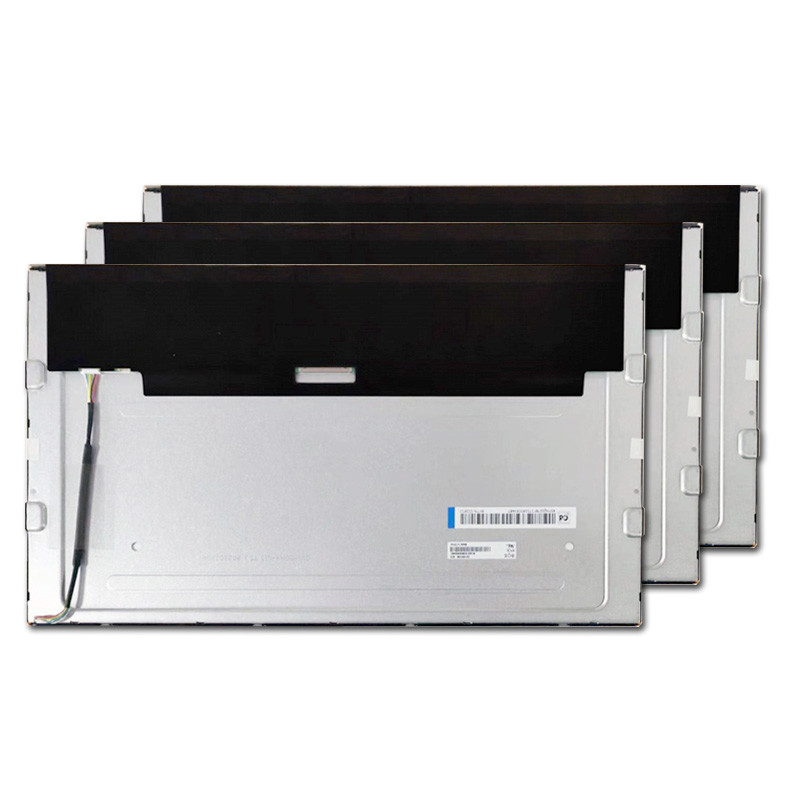

18.5 inch GV185FHM-N10 BOE Displays with 30pin LVDS Interface IPS LCD Display Module
| BOE GV185FHM-N10-3M30 Optical Details | ||||
| Basic Detail : | Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 1200:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 30 (Typ.)(Tr+Td) | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | ADS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.286; Wy:0.296 | Support Color | 16.7M (8-bit) |
| Color Temperature | 9066K | White Variation | 1.18/1.25 (Typ./Max.)(9 points) | |
| BOE GV185FHM-N10-3M30 Mechanical Details | ||||
| Pixel Features : | Number of Pixel | 1920(RGB)×1080, FHD | Arrangement | RGB Vertical Stripe |
| Dot Pitch | 0.071×0.213 (H×V) | Pixel Pitch(W×H) | 0.213×0.213 (H×V) [119PPI] | |
| Physical Size : | Active Viewing | 408.96(H) × 230.04(V) | Bezel Area(mm) | 410.96(H) × 232.04(V) |
| (mm) | ||||
| Outline Dim. | 430.4(H) × 254.6(V) | Depth(mm) | 12.5 (Max.) | |
| (mm) | ||||
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:09 | Shape Style | ||
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Detail : | Mass | 1.80Kgs (Typ.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
This BOE LCD Display is produced by a professional lcd screen factory and display panel factory, and it is a high-quality lcd panel.
BOE GV185FHM-N10 is a medical TFT display that can be used in various medical applications such as patient monitoring systems, surgical displays, and diagnostic devices. Its high resolution of 1920×1080 pixels delivers clear and sharp images, which makes it perfect for medical imaging.
This display can also be used as an industrial TFT LCD in various industrial applications. Its wide viewing angle of 85/85/85/85 and high luminance of 500 nits make it perfect for outdoor usage. It can be used in rugged environments and harsh conditions with an operating temperature range of -20℃ to 70℃.
Our technical support team is available to assist with any questions or issues related to the BOE LCD Display product. We offer a range of services, including:
We are committed to providing our customers with the highest level of support and service. Please do not hesitate to contact us if you require any assistance.
The BOE LCD Display will be securely packaged with foam padding and a cardboard box to prevent any damage during shipping. The package will also include a user manual and necessary cables for installation.
Shipping:
The product will be shipped via a reliable courier service such as DHL or FedEx. The shipping time will depend on the destination and chosen shipping method, but customers can expect to receive their order within 5-10 business days. Tracking information will be provided to the customer once the product has been shipped.
