Product Details
Place of Origin: Shenzhen, China
Brand Name: BOE
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: MV238FHM-N10
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
23.8 |
Resolution: |
1920*1080 Pixels |
Luminance(nits): |
250 |
Active Area (W*H): |
527.04*296.46 |
Outline Dimension (W*H*T): |
543.0*317.4*11.1 |
Operating Temperature: |
-0℃～50℃ |
Storage Temperature: |
-20℃～60℃ |
Interface: |
LVDS 30 |
Viewing Direction: |
IPS |
Viewing Angle(RLUD): |
89/89/89/89 |
LED Lifetime (hrs): |
30k |
Contrast Ratio: |
1000 |
Size (inch): |
23.8 |
Resolution: |
1920*1080 Pixels |
Luminance(nits): |
250 |
Active Area (W*H): |
527.04*296.46 |
Outline Dimension (W*H*T): |
543.0*317.4*11.1 |
Operating Temperature: |
-0℃～50℃ |
Storage Temperature: |
-20℃～60℃ |
Interface: |
LVDS 30 |
Viewing Direction: |
IPS |
Viewing Angle(RLUD): |
89/89/89/89 |
LED Lifetime (hrs): |
30k |
Contrast Ratio: |
1000 |

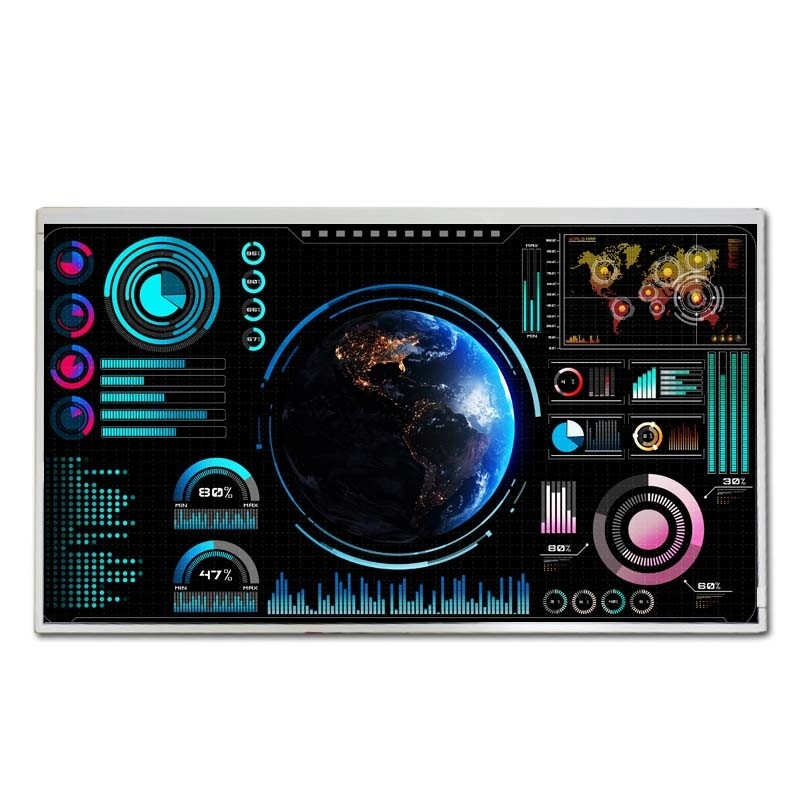

23.8 inch MV238FHM-N10 1920*1080 Pixels BOE IPS LCD Display Module for Business
| BOE MV238FHM-N10 Optical Details | ||||
| Basic Information : | Luminance | 250 cd/m² (Min.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 14 (Typ.)(Tr+Td) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | ADS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Display Colors | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 74% | sRGB | 98% coverage |
| Adobe RGB | 77% coverage | DCI-P3 | 77% coverage | |
| Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| BOE MV238FHM-N10 Mechanical Details | ||||
| Pixel Features : | Number of Pixel | 1920(RGB)*1080, FHD | Arrangement | RGB Vertical Stripe |
| Dot Pitch (mm) | 0.0915*0.2745 mm | Pixel Pitch (mm) | 0.2745*0.2745 mm [92PPI] | |
| Physical Size : | Active Viewing(mm) | 527.04(W)*296.46(H) mm | Bezel Area (mm) | 530.2(W)*299.6(H) mm |
| Outline Dim. (mm) | 543(W)*317.4(H) mm | Outline Depth | 8.2/11.4(Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Normal bezel |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 2.39Kgs (Typ.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
This BOE LCD Display is an industrial LCD screen with a LVDS display interface. It is manufactured by a professional lcd screen factory, and has a luminance of 2500 nits. The active area of the screen is 527.04*296.46mm, and the size of the screen is 23.8 inches. Additionally, it has a contrast ratio of 1000.
This BOE LCD Display Panel is ideal for a variety of occasions and scenarios. Its high contrast ratio of 1000 and IPS viewing direction make it perfect for applications where clear and vivid visuals are essential, such as in military LCD displays. With a luminance of 2500 nits, this display is bright enough to be used in outdoor environments, making it perfect for applications such as digital signage and outdoor advertising.
With a LED lifetime of 30K hours, this BOE LCD Display Panel is not only high in performance but also long-lasting, making it a cost-effective solution for businesses and organizations. The storage temperature range of -20℃～60℃ also ensures that the display can withstand even the most extreme environments.
Contact us today to learn more about the BOE LCD Display Panel and to get the latest pricing information. Our team of experts is always on hand to answer any questions you may have and to help you find the perfect display solution for your needs.
BOE LCD Display Product Technical Support and Services:
- Technical consulting and problem solving support
- Testing and evaluation of products
- Repair and maintenance services
- Product customization and development
- Training and education services
- Warranty and after-sales support
Product Packaging:
The BOE LCD Display will be securely packaged in a cardboard box with foam padding to ensure safe delivery. The box will be labeled with the product name, specifications, and handling instructions.
Shipping:
The BOE LCD Display will be shipped via a reputable courier service, such as UPS or FedEx, to ensure timely and safe delivery. A tracking number will be provided to the customer so they can track the progress of their shipment.
